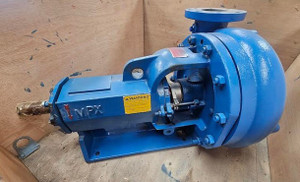

MPX Pumps 5X4X14-250-LF-MPX, (MISSION STYLE) Mud Pump-250 Series-Long Frame-Hard Iron +++FACTORY NEW+++

Specifications:

• Hard Iron Housing
• Long Frame
• 12" Impeller
• Speed: 1450/1750 RPM
• Capacity:  80~120 (m3/h) - 352~528(GPM)
• Head:  24~28m
• Power:  18.5/22/30 kw
• Inlet Diameter:  5"
• Outlet Diameter: 4"
• Mechanical Seal

MPX Pumps are proven as reliable, heavy-duty, low-cost slurry pumps. The 3×2×13 through 8×6×14 pumps all feature the same power end, which ensures production and reduced spare-part inventory requirements. The MPX-Pumps 250 Series has been engineered for the toughest jobs in drilling, production, well-servicing, and industrial applications. The MPX-Pumps 250 Series  is more powerful, more durable, and easier to maintain than any conventional pump in use today.

The MPX-Pumps 250 Series has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids.  The pump can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration)

MPX-Pumps centrifugal pumps can be used as Frac discharge pump, Frac suction pump, Oil drilling centrifugal pump, electric centrifugal transfer pump, Skid mounted mixing pump, Transfer pump, Trash pump, Grinding pump, Circulating mud pump, Centrifugal sludge pump, Drilling fluid centrifugal pump, Horizontal directional drilling pump, Denver pump, Filling pump, Feeding pump, Heavy duty oil drilling centrifugal pump, etc.

Features:

• Up to 50% more capacity from the 8 x 6 pump
• Optimum pressure at low operating speeds
• Thicker casing to extend life from wear and corrosion
• New impeller design to reduce loads and extend bearing life
• Larger, stronger shaft to reduce deflection
• Replaceable shaft sleeve in packing wear area
• Larger, long-life bearings
• Replaceable stuffing box cover
• Smoother, non-turbulent flow throughout casing

Applications:

• Mud pumping – offshore/onshore
• Solids control
• Dredging
• Leveling or Rig Platform (ballast)
• Barite, ferric oxide, and mineral oil
• Base drilling muds
• Glass fibers
• Sugar processing
• Ash or coal conveyers
• Cement
